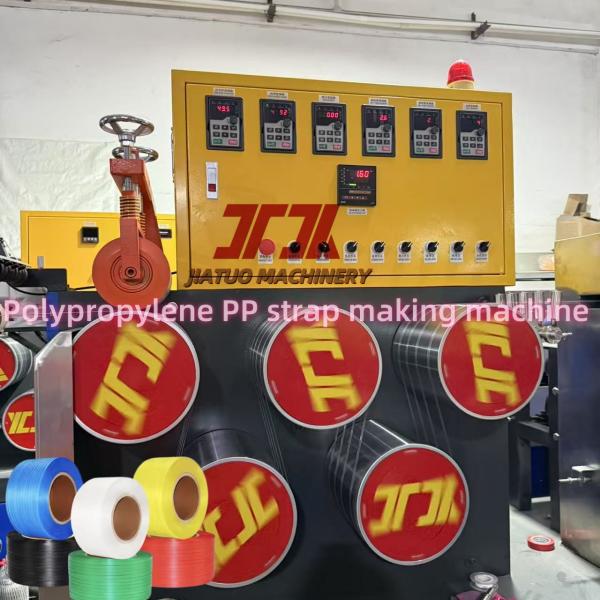

Automatic PLC Screen PP Belt Extruder PP Strap Making Machine With GUOMAO Motor
Description of PP strap making machine
PP strap band extrusion line is mainly for producing PP strap.
The raw material can be 100% recycled material,which can reduce the produce cost and get a good profit. And the Pp bale is the substitution of the steel strap and has a lot of advantages such good extension,high temperature resistant,easy use.
With PP recycled material, to produce various specifications of PP strap. It consists of drying system, extruder, screen changer, mould, oven, haul-off, and winder, etc.
Introduction of PP belt making line
PP Packing Straps Making Machine
| Power supply | 380V,3 phase,50HZ |
| Raw material | PP material |
| Width of final product | 5-19mm |
| thickness of final product | 0.4-1.2mm |
| Max Capacity | 180-200kg/hour |
| Manpower | 2 persons/shift |
| Machine Dimension | 30*2*4m |
| BRANDS |
| Motor | GUGAO |
| Gearbox | GUOMAO |
| Contactor | Schneider |
| Temperature controller | Schneider |
| Inverter | INVT |
Different Model of JIATUO pp strap production line
PP strap Extrusion production Machine
| Model | Strap Qty | Output |
| JTPP-90 | 2 | 120-150kg/h |
| JTPP-110 | 4 | 240-280kg/h |
| JTPP-125 | 6 | 400-450kg/h |
Advantages
JIATUO PP packing belt making machines, PP packing strap extrusion machine
- Special design of the screw extrusion technology can be choosing as per customer needs.
- Can process 100% recycled PP/PET bottle flakes or pellets.
- Plasticization and stable extrusion can with PLC automatic control for the full line.
- According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
- Melt filter with two pistons with air venting design and back flushing.
- Number of strap:2,3,4,6,8 Width: 5mm-19mm,Thickness: 0.4mm-1.2mm
- Workers: 2 -3 workers per shift, 12 hours/shift, if change the fully automatic winder can just need one person to operate.
Why choose us:
- The final straps can be packed automatically
- We major in PP Strap Production Line for nearly 30 years
- Always have at least 3 sets of sample machine in our workshop
- Can take customers to see the running machines
- Can test the machine for customers
